Travel 8001000600mm Fully Automatic coordinate measuring machine

Travel 800*1000*600mm Fully Automatic coordinate measuring machine is integrated with high precision and encircled metal adaptability to be applicable for wide measuring scope from medium and small measuring range to great measuring range. Suzhou KM Corporation designed and manufactured the travel 800*1000*600mm Fully Automatic coordinate measuring machine in China. We have been in the metrology industry for many years. Our CMM is competitive in South-east and south Asia with good price and stability. We endeavor to provide good quality to you and be your long-term partner in China.

Two columns of measuring machine are adopted with double layer design fully to lower the influence on measuring machine precision by external temperature change and air conditioner’s air supply system to enable that the measuring machine is provided with

The brand-new pedestal design of measuring machine is completely compatible with high-efficient passive vibration isolation system or positive air vibration isolation system to meet the utilization demand of plant with strong earthquake source and on-line

Send Email

Chat Now

Share With:

Introduction

Fully automatic video measuring machine is an instrument used for accurate physical dimension measuring, and Suzhou KM Precision Machinery Corporation is specialized in manufacturing fully automatic video measuring machine, and owns reputation in south-Asia and east-Europe.

Fully automatic video measuring machine is a powerful dimension measuring device designed for mass production quality control process. It is configured with powerful software which makes the measuring process programmable, and users can achieve big quantity products measuring by full automatic process. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC vision measurement machine with very low price.

Fully automatic video measuring machine can accurately measure points, lines, circles and other elements, and has a powerful report output function, which is especially suitable for measuring a wide range of products in large quantities. It is suitable for two-dimensional coordinates for the purpose of all applications, in the machinery, electronics, instrumentation, plastics and other industries are widely used.

Features

1.The tri-axle is adopted with rectangular guide rail with elaborated design, and the so-called various “Unique “and “Patented” and even strange polygon guide rail structures are abandoned , returning to nature. The correction model upon rectangular guide rail error is simple and practical; the form is most common form in the high-precision measuring machine.

2. Long axis is adopted with the most ideal three-coordinate transmission system recognized by industry currently---- metallic frictional transmission. Compared with such gear-shape transmission as common synchronous belt and gear rack, the tooth profile efficiency is eliminated completely to enable that the trans-mission is more steady, effectively eliminate the machine shock brought by the flexible telescoping of synchronous belt and improve the transmission rigidity of measuring machine so as to reach better starting, stopping and positioning capability, which is ideal selection for high-precision scanning measurement.

3. The surrounding-type air bearing layout design is adopted uniformly for tri-axle, and the pre-compression air bearing with high air membrane rigidity is utilized. Through comparison between with other layout and surrounding layout on all sides, the pre

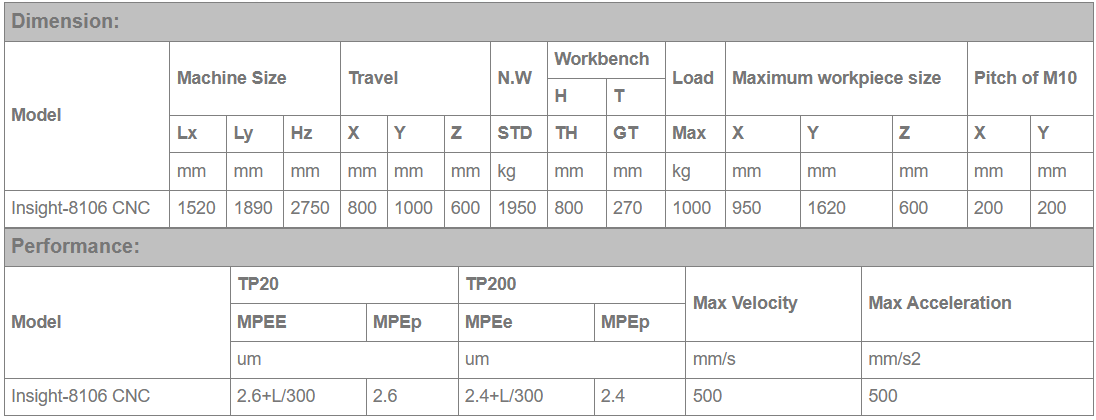

Technical Specification
