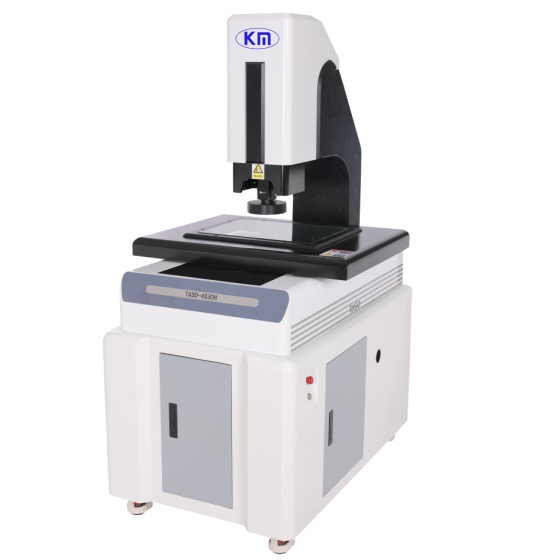

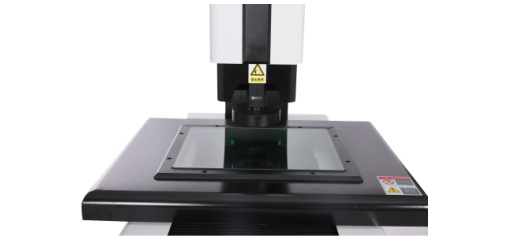

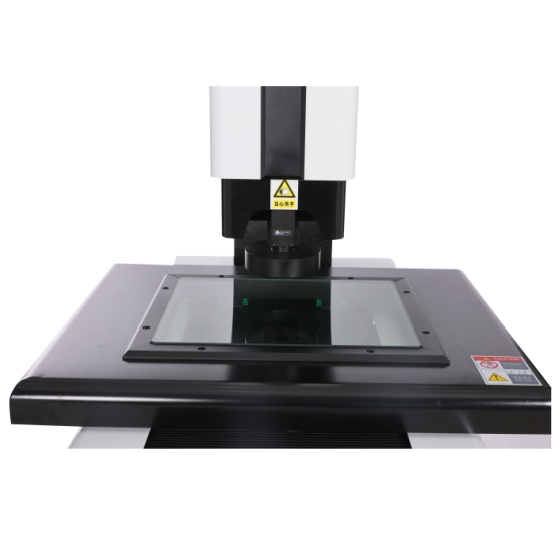

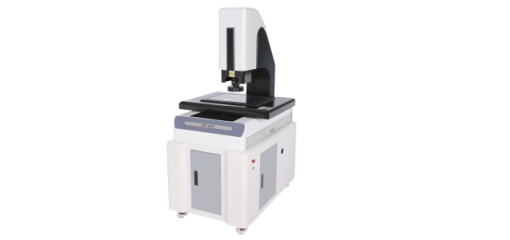

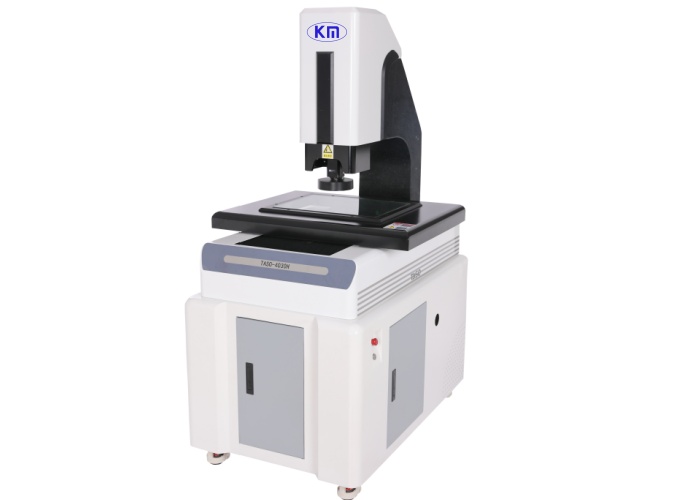

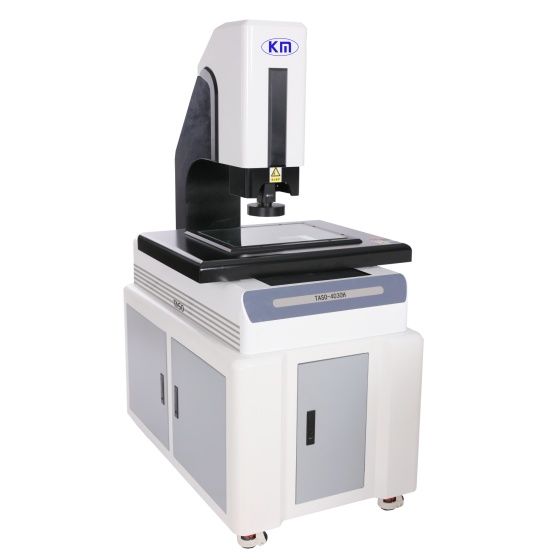

CNC OMM Series High Configuration
CNC OMM Series High Configuration
Full-size high-precision high-configuration, four-axis automatic (X, Y, Z, zoom)
Suitable for the pursuit of superior quality and higher inspection requirements for product measurement

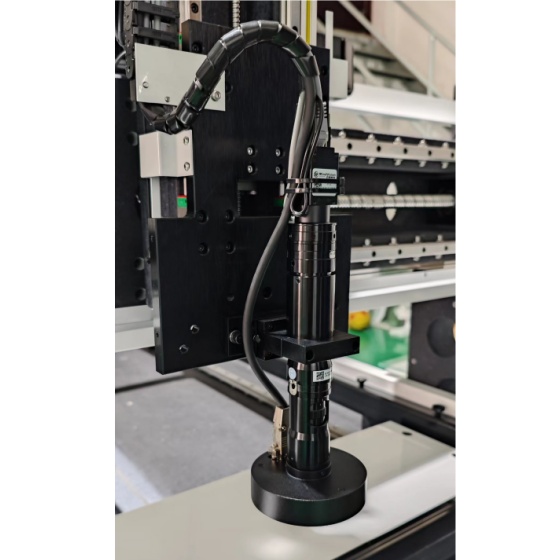

Z-axis can optionally be equipped with spectra, lasers, probes, etc.
Send Email
Chat Now
Share With:
Introduction
Features
Parameters
Related
Inquiry
Introduction
• Full-size high-precision high-configuration, four-axis automatic (X, Y, Z, zoom)
• Suitable for the pursuit of superior quality and higher inspection requirements for product measurement
• Z-axis can optionally be equipped with spectra, lasers, probes, etc.
Features
Full-size high-precision high-configuration, four-axis automatic (X, Y, Z, zoom)
Suitable for the pursuit of superior quality and higher inspection requirements for product measurement
Z-axis can optionally be equipped with spectra, lasers, probes, etc
Technical Specification
Model
OMM3020
OMM4030
OMM5040
X*Y Travel（mm）
300*200
400*300
500*400
Z（mm）
200
200
200
XY accuracy （μm）
E=（1.8+L/200）
E=（1.8+L/200）
E=（1.8+L/200）
Dimension（mm）
860*650*1665
1080*835*1685
1320*990*1750
Weight（KG）
330
390
545
Related Recommended Products

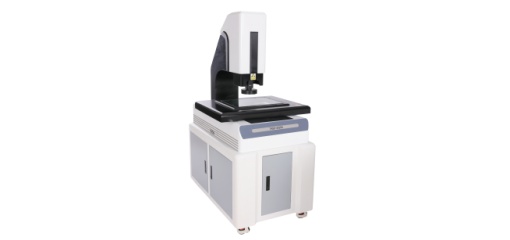

Horizontal One-Click Measurement
Horizontal One-Click Measurement
Learn More

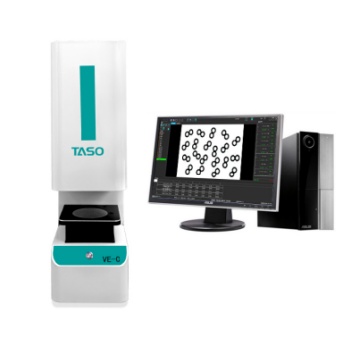

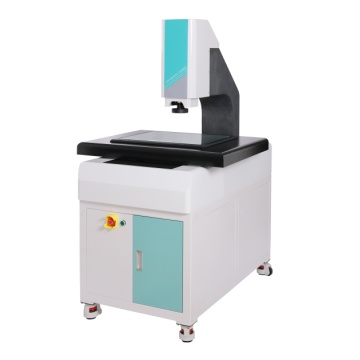

One-Click Measurement
One-Click Measurement
Learn More
Cutter Measuring Machine
The PG-2000E cutter measuring instrument uses a 500W high-definition color digital camera to detect various tool graphic sizes, thereby improving the accuracy of tool measurement. By using powerful size measurement software, it is possible to quickly measure the front angle, back angle, helix angle, backlash angle of the forming milling cutter, and detect various cutting tools such as round nose cutters and ball cutters. The software comes with contour tracking and scanning function, with contour setting and size comparison function.
Learn More

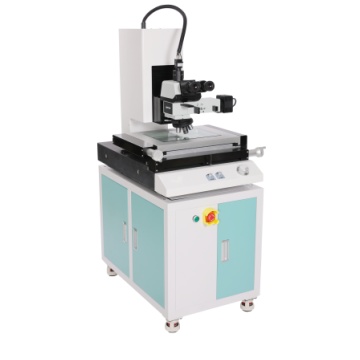

Metallographic Measuring Instrument
Adopting high-definition color digital cameras; The zoom objective and crosshair generator serve as the measurement and aiming system; A digital measurement and data processing system composed of a two-dimensional flat workbench, a grating ruler, and a data box; The instrument has various data processing, display, input, and output functions; After connecting to the computer, specialized measurement software can be used to process the measurement graphics.rement graphics.
Learn More
