Horizontal One-Click Measurement

Gantry VME Series

Adopting high-definition color digital cameras; The zoom objective and crosshair generator serve as the measurement and aiming system; A digital measurement and data processing system composed of a two-dimensional flat workbench, a grating ruler, and a data box; The instrument has various data processing, display, input, and output functions; After connecting to the computer, specialized measurement software can be used to process the measurement graphics.rement graphics.

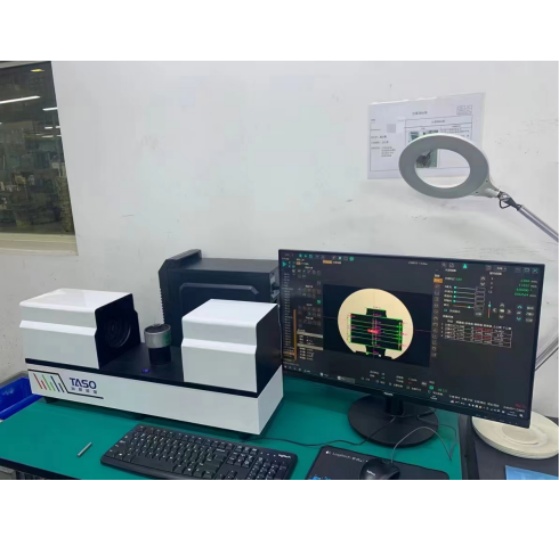

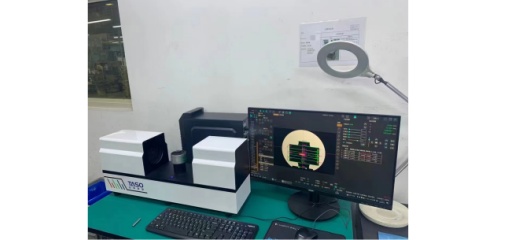

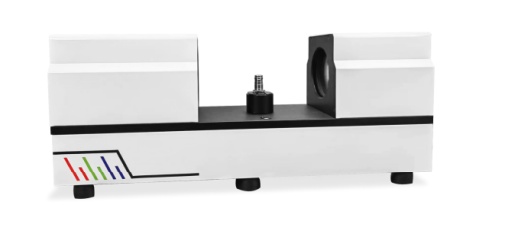

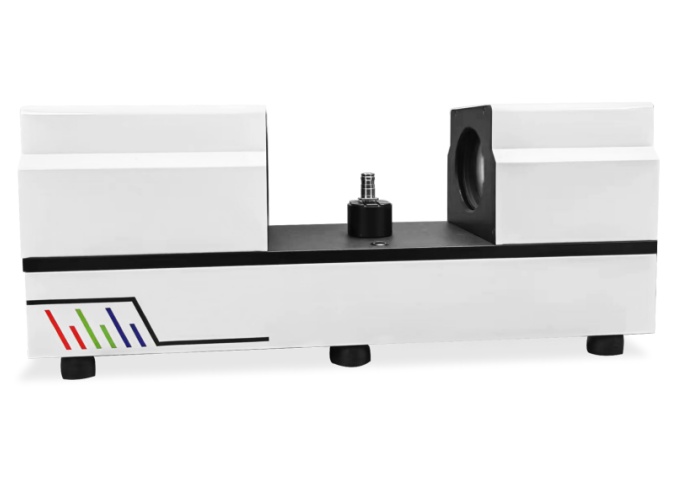

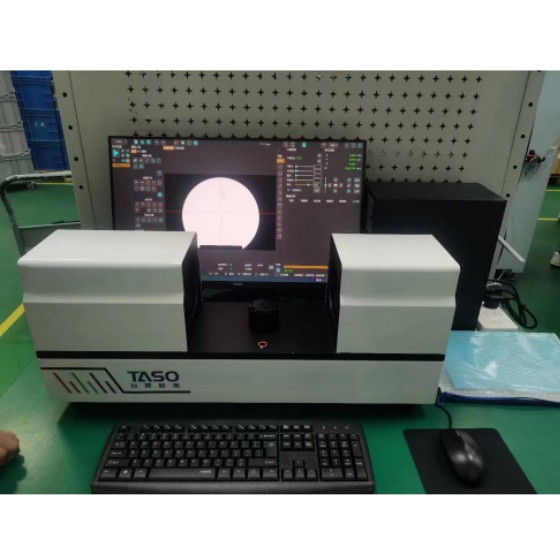

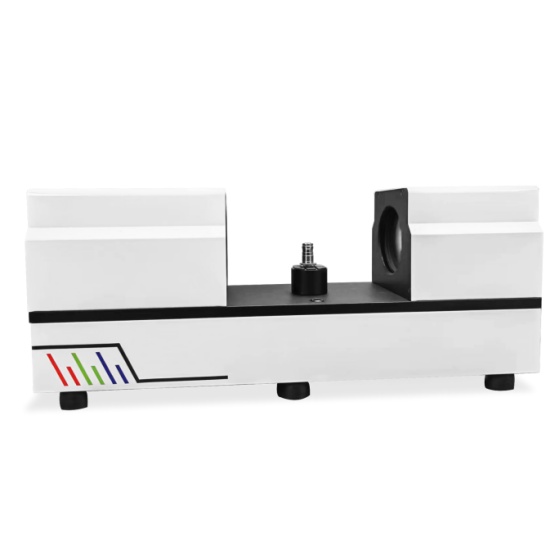

The PG-2000E cutter measuring instrument uses a 500W high-definition color digital camera to detect various tool graphic sizes, thereby improving the accuracy of tool measurement. By using powerful size measurement software, it is possible to quickly measure the front angle, back angle, helix angle, backlash angle of the forming milling cutter, and detect various cutting tools such as round nose cutters and ball cutters. The software comes with contour tracking and scanning function, with contour setting and size comparison function.

One-Click Measurement
