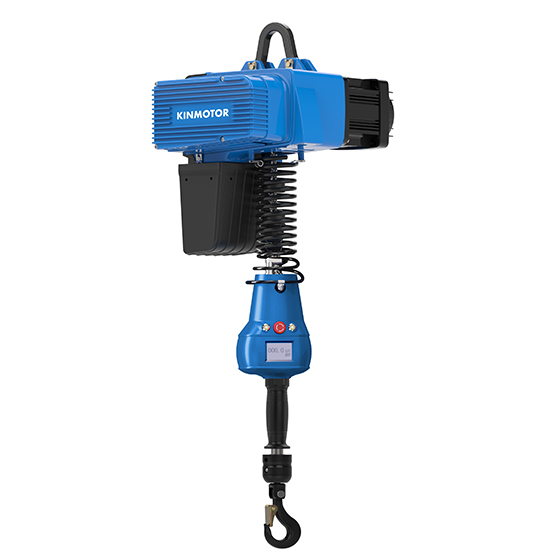

D3 Intelligent Lifting Hoist - Coaxial Handle

The D3 Coaxial Handle series is made of aluminum housing, light weight and strong, and has own patented technology.

Control Mode: Handle/Floating Dual Mode

Stepless speed/Controllable speed

Safe and Reliable.

Send Email

Chat Now

Share With:

Introduction Description

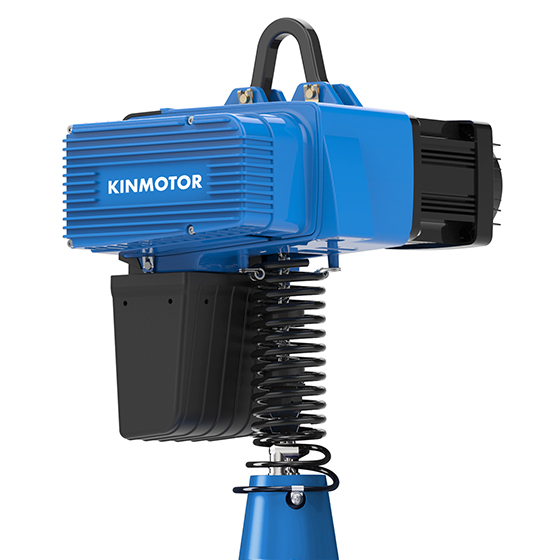

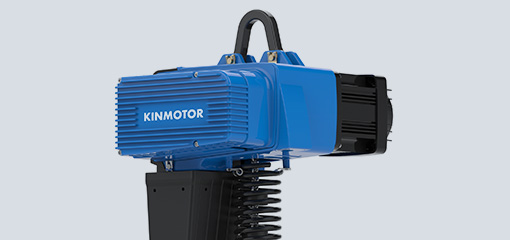

The D3 Intelligent Lifting Hoist series is made of aluminum housing, light weight and strong, and has its own patented technology, using an industrial processor-controlled servo drive system to achieve unmatched handling speed and assembly accuracy. It combines advanced technology with human movement commands, like the operator's extended arm, to lift and move heavy objects with ease. Golden shaft station intelligent elevator for you to achieve maximum production efficiency, reduce the physical strength of production personnel, while reducing the rate of product damage, reduce the occurrence of industrial accidents.

Features

Handle/floating dual mode

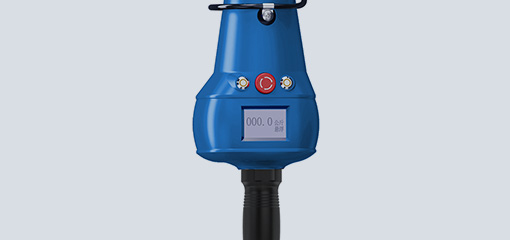

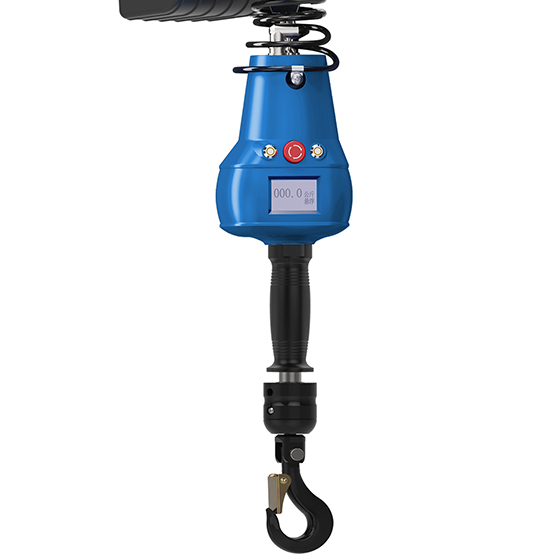

Handle mode：Ergonomic, single hand can realize the load up and down movement, correct control
Floating mode: Fingertip control, according to the operator wishes to move fast and slow, effortless instantaneous response. operator

Stepless speed/controllable speed
The station intelligent elevator can move fast or slow with the operator's action and float freelyMove. It is especially suitable for assembly applications that require both fast movement and slow precision alignment

Accurate alignment function
Extremely accurate alignment control function, so that the operator can accurately and stably control precision and easy Broken work items

Technical Parameters

No.	D3L012	D3L025	D3L050
Maximum Load(kg)	125	250	500
Lifting Speed（m/min）	0-18	0-15	0-12
Rated Power(KW)	0.75	0.75	1.1
Maximum vertical range(m)	2.8 (Customizable)
Control Mode	Coaxial Sliding Handle
Weight( kg )	27	27	36
Chain Specification(mm)	5.0	5.0	6.3
Power	Standard 380V (Optional 220V)
Organization Job Level	M5	M5	M5
Operating temperature (℃)	-10℃~55℃
