D3 Intelligent Lifting Hoist - Hand Held Type

The D3 Hand Held Type Intelligent Lifting Hoist combines advanced technology with human movement commands.
Safe and Reliable.
Accurate alignment function
Stepless speed/Controllable speed
Introduction
Features
Parameters
Wiring Diagram
Related
Inquiry
Introduction Description
The D3 Intelligent Lifting Hoist - Hand Held Type series combines advanced technology with human movement commands, like the operator's extended arm, to lift and move heavy objects with ease. Golden shaft station intelligent elevator for you to achieve maximum production efficiency, reduce the physical strength of production personnel, while reducing the rate of product damage, reduce the occurrence of industrial accidents.
Features

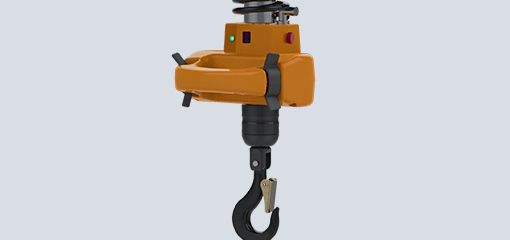

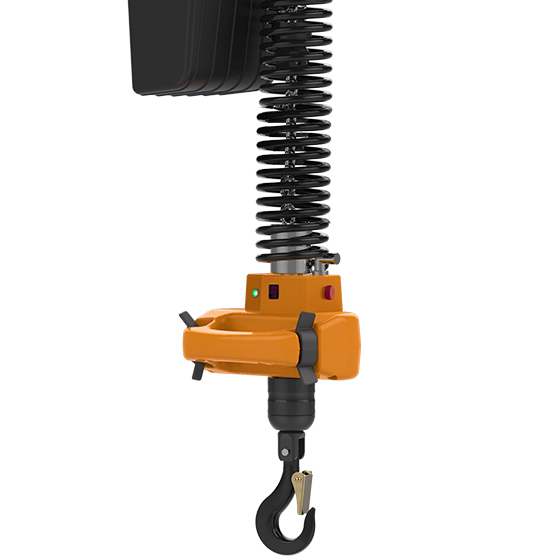

Handle using ergonomic principle, comfortable grip, with two-sided control lever, single-hand can easily control the material lifting, and can be alternately controlled by switching hands .
The stepless speed can achieve millimeter-level movement, which is not only more accurate positioning, but also operation, lifting and landing more stable, give full play to the intelligent elevator fast stable characteristics;
High cost performance, suitable for all kinds of station hoisting. Not only reduce the labor intensity, but also improve the smart outfit standby level, to ensure the fast pace of automation work.
Technical Parameters
No. D3L012 -F D3L025 - F D3L050 -F
Maximum Load(kg) 125 250 500
Lifting Speed(m/min) 0-18 0-15 0-12
Rated Power(KW) 0.75 0.75 1.1
Maximum vertical range(m) 2.8 (Customizable)
Control Mode Hand-held stepless transmission handle
Weight( kg ) 23 23 32
Chain Specification(mm) 5.0  5.0 6.3
Power Standard 380V (Optional 220V)
Organization Job Level M5 M5 M5
Operating temperature (℃) -10℃~55℃

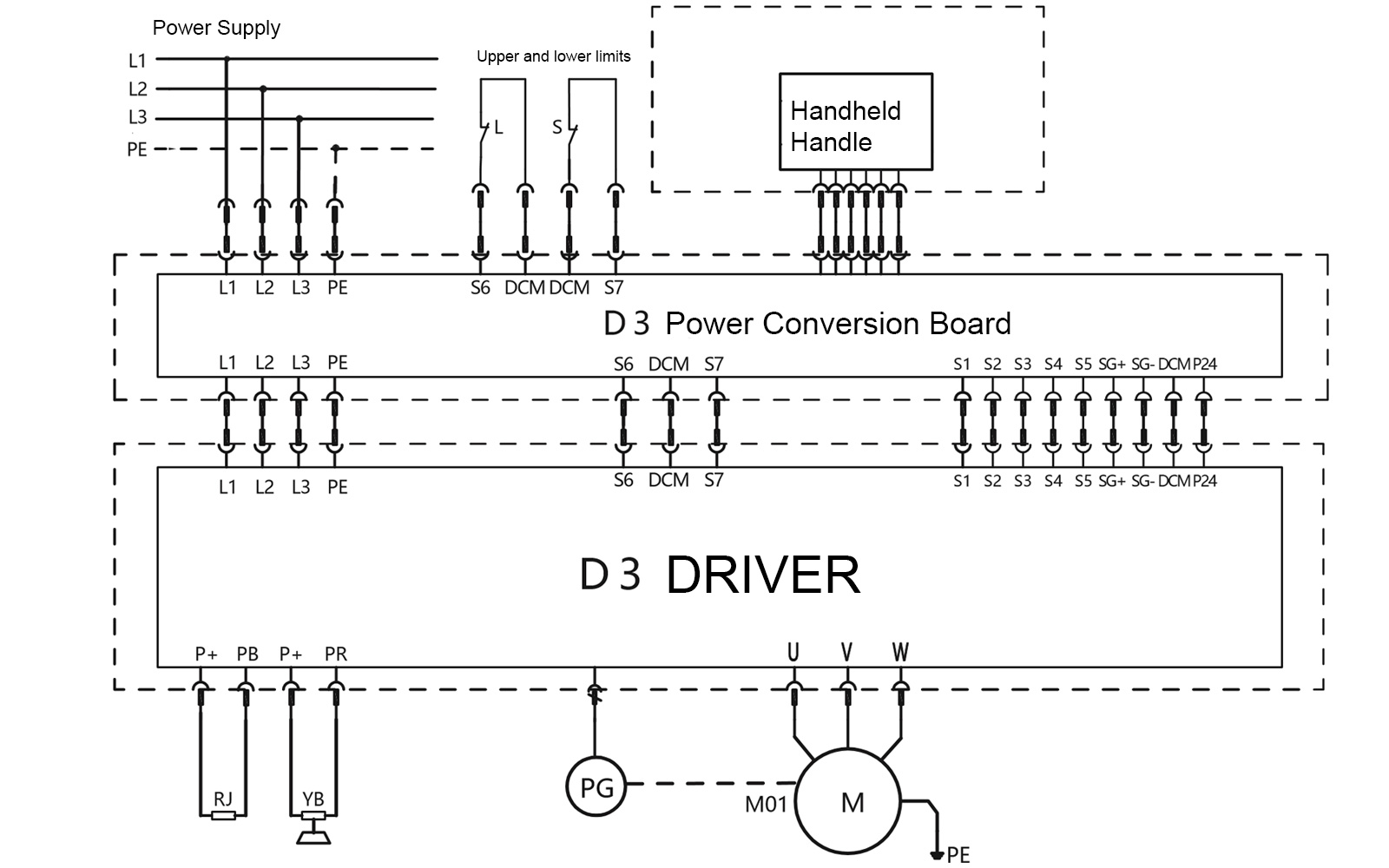

Wiring Diagram
D3 Intelligent Lifting Hoist - Hand Held Type- Hand Held Type
