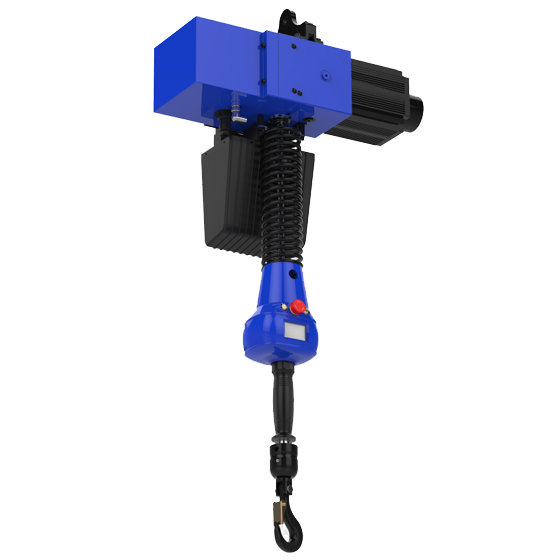

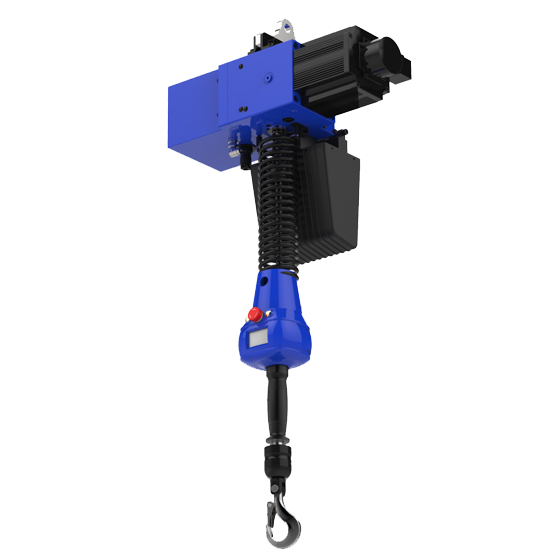

Q5 Intelligent Lifting Hoist

The Q5 series has two control model，Maximum load from 100 – 500kg, lifting speed 0- 16 m/min.

Control Mode: Handle/floating dual mode

Overload protection, Anti-rebound, Power-off protection

Photoelectric sensor, Stepless speed change, Precise counterpoint

Send Email

Chat Now

Share With:

Introduction Description

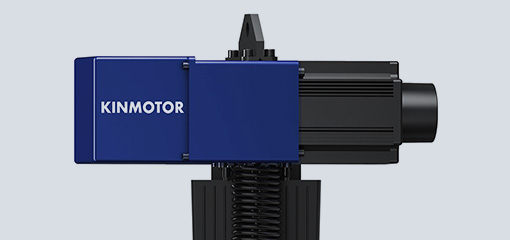

The Q5 Intelligent Lifting Hoist series is made of aluminum housing, light weight and strong, and has its own patented technology, using an industrial processor-controlled servo drive system to achieve unmatched handling speed and assembly accuracy. It combines advanced technology with human movement commands, like the operator's extended arm, to lift and move heavy objects with ease. Golden shaft station intelligent elevator for you to achieve maximum production efficiency, reduce the physical strength of production personnel, while reducing the rate of product damage, reduce the occurrence of industrial accidents.

Features

Overload protection function: Automatic weight sensing can realize the weight of the load, if the rated load is exceeded, it will immediately alarm and do not allow the load to be lifted.

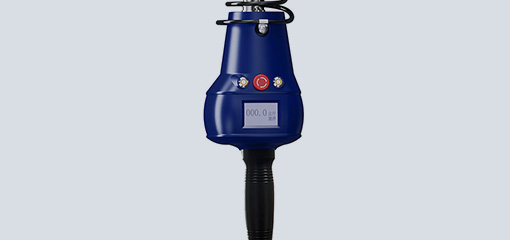

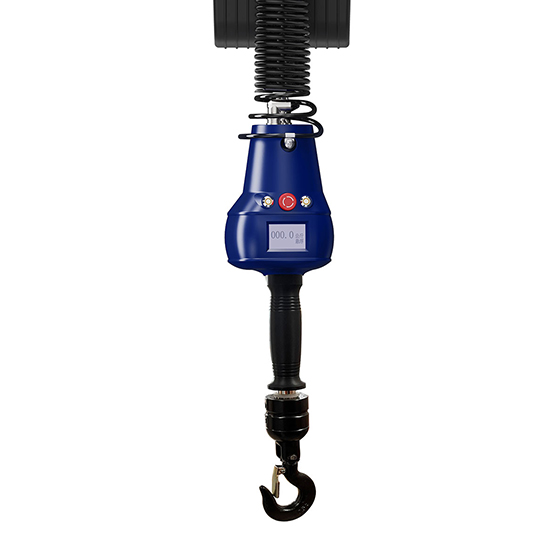

Photoelectric sensing function: The operating handle of the intelligent hoist is integrated with photoelectric sensors, which allow the device to move only after sensing the operator in place to prevent accidental touch.

Anti-rebound function: Prevent movement and rebound when the load weight mounted on the station intelligent hoist changes, eliminating potential safety hazards.

Technical Parameters

No.	Q5L010	Q5L020	Q5L030		Q5L050
Maximum Load(kg)	100	200	300		500
Lifting Speed（m/min）	0-16	0-13	0-11		0-10
Rated Power(KW)	0.55	0.75	1.1		1.5
Maximum vertical range(m)	2.8 (Customizable)
Control Mode	Coaxial Sliding Handle
Weight( kg )	40	40		45	45
Chain Specification(mm)	5.0	5.0		6.3	6.3
Power	Standard 220V (Optional 380V)
Organization Job Level	M5
Operating temperature (℃)	-10℃~55℃
