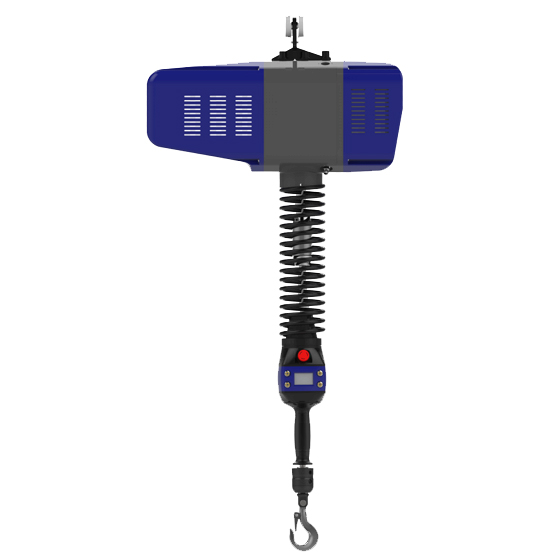

X3 Intelligent Lifting Hoist

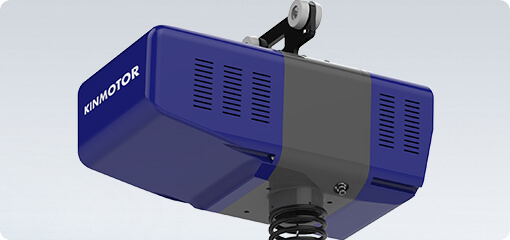

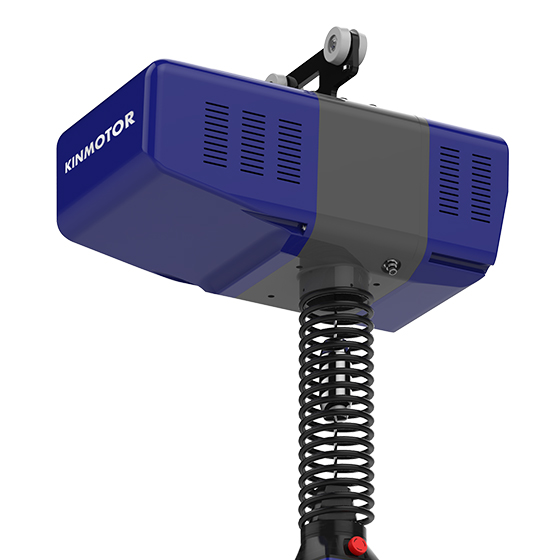

The X3 series is made of aluminum housing, light weight and strong, and has own patented technology.

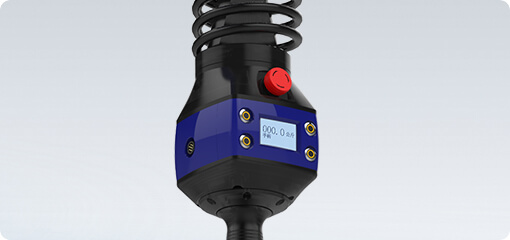

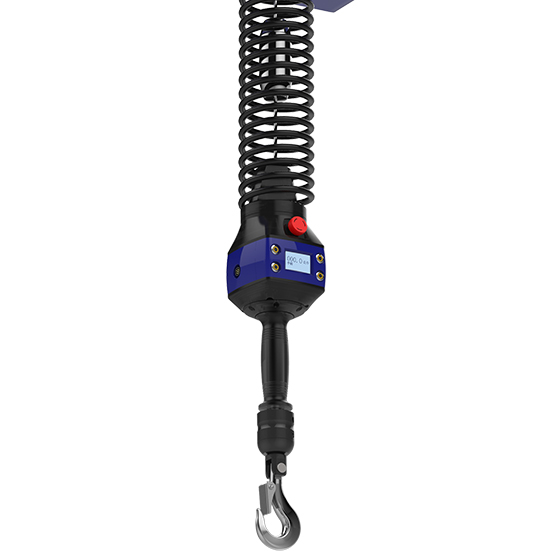

Control Mode: Coaxial Pressure Handle

Using an industrial processor-controlled servo drive system.

Combines advanced technology with human movement commands.

Send Email

Chat Now

Share With:

Introduction Description

The X3 Intelligent Lifting Hoist series is made of aluminum housing, light weight and strong, and has its own patented technology, using an industrial processor-controlled servo drive system to achieve unmatched handling speed and assembly accuracy. It combines advanced technology with human movement commands, like the operator's extended arm, to lift and move heavy objects with ease. Golden shaft station intelligent elevator for you to achieve maximum production efficiency, reduce the physical strength of production personnel, while reducing the rate of product damage, reduce the occurrence of industrial accidents.

Features

The wire rope structure with higher accuracy replaces the traditional ring chain structure, and the running speed is higherQuick, more accurate matchups

The fastest speed can reach 30m/min, and the lowest speed is as low as 0.05m/min, which ensures the move precise control when transporting and assembling precision instruments or bump-prone parts;

Start, run, landing has better stability, the use of small strands tightly wound thick steel wire rope can have effect to avoid rotation and distortion, with the built-in planetary reducer, smooth and noiseless during operation test more vividly.

Technical Parameters

No.	X3S010	X3S020		X3S030	X3S060
Maximum Load(kg)	100	200		300	600
Lifting Speed（m/min）	30	25		20	16
Rated Power(KW)	0.8	0.8		1.1	1.1
Maximum Vertical Range(m)	2.5				1.6
Control Mode	Coaxial Pressure Handle
Weight( kg )	40	43	45		45
Power	Standard 220V (Optional 380V)
Organization Job Level	M5	M5			M5
Operating temperature (℃)	-10℃~55℃
