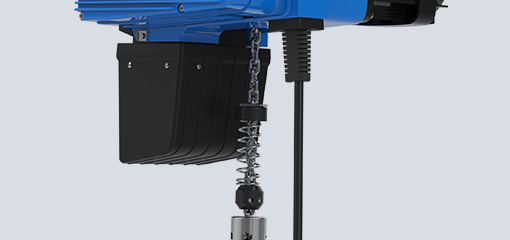

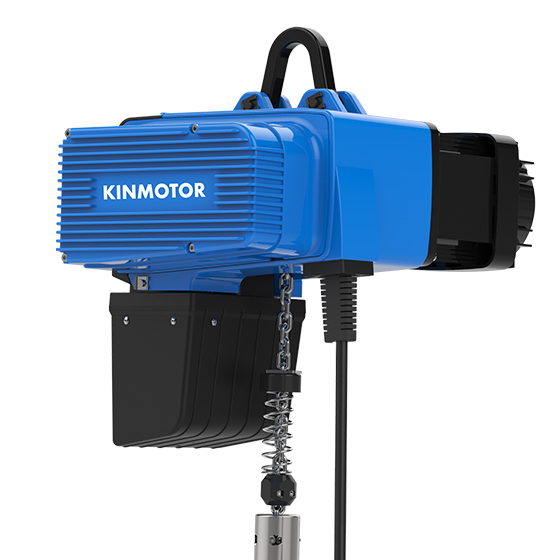

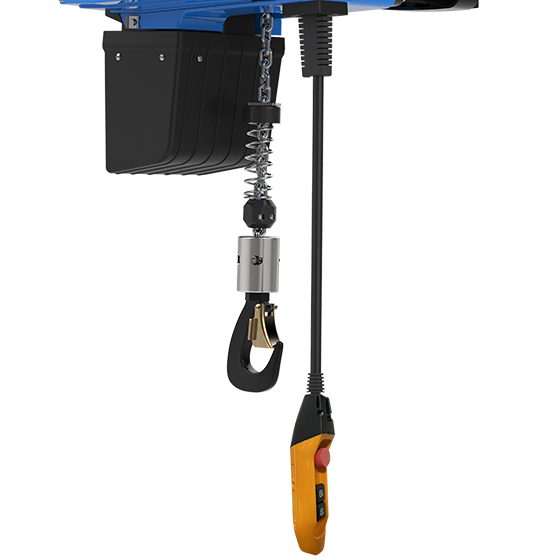

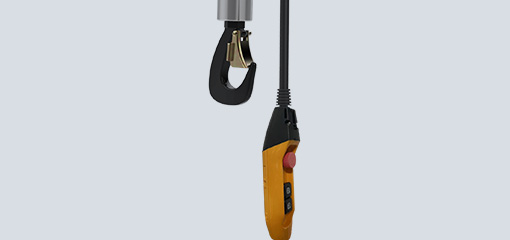

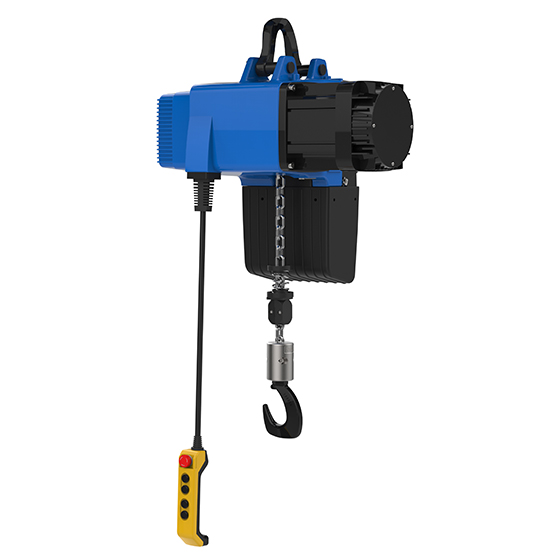

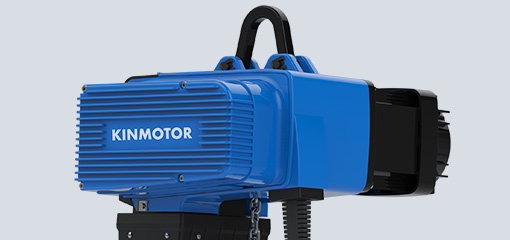

D2 Servo Chain Hoist

The D2 Servo Chain Hoist series is stepless speed change, accurate positioning. wide range of lifting and falling speed, high accuracy, the lowest up to 0.05m/min, flexible choice.

Special servo motor, smooth operation performance.

Stepless speed change, accurate positioning. Wide range of lifting and falling speed, high accuracy, the lowest up to0.05m/min, flexible choice.

Quiet, smooth no vibration, accurate alignment accuracy is high.

Send Email

Chat Now

Share With:

Introduction Description

D2 Servo Chain Hoist series with aluminum housing, light weight and strong, low net empty design, and the use of custom driver with special motor, for the lifting of the hoist is controlled and the speed can be adjusted arbitrarily, which can be lower than the conventional low speed speed gear 1/2, high speed can be higher than 50% of the conventional high-speed gear, smooth operation, and lifting and stopping vibration is small, no impact, low failure rate, strong protection ability, the whole machine. Long service life, reserve a variety of control interfaces, easy to automate control.

Features

Compared with the traditional hoist, the response speed is faster, the operation is more reliable, the fault is lower, and the service life is longer;

Many interfaces, flexible configuration, can be adapted to a variety of control interface signals, easy to automate control.

Built-in remote control module to control the operation of electric travel drives.

Technical Parameters

No.	D2C012	D2C025		D2C050		D2C100	D2C200
Maximum Load(kg)	125	250		500		1000	2000
Lifting Speed（m/min）	0-20	0-20		0-17		0-15	0-7.5
Rated Power(KW)	0.75	0.75		1.1		2.2	2.2
Maximum vertical range(m)	4/5/8/11 (Customizable)
Control Mode	Wire button/remote button
Weight( kg )	25	25	32		52		62
Chain Specification(mm)	5.0	5.0	6.3		7.1		7.1
Power	Standard 380V (Optional 220V)
Organization Job Level	M5
Operating temperature (℃)	-10℃~55℃
