The D2 Variable Frequency Chain Hoist is stepless speed change, accurate positioning. wide range of lifting and falling speed, high accuracy, the lowest up to 0.05m/min, flexible choice.
Custom frequency conversion drive, special frequency conversion motor, reliable and stable
Perfect and multiple protection functions to ensure safe and stable operation
Low noise, stable and no vibration, high control accuracy;
Introduction
Features
Parameters
Wiring Diagram
Related
Inquiry
Introduction Description

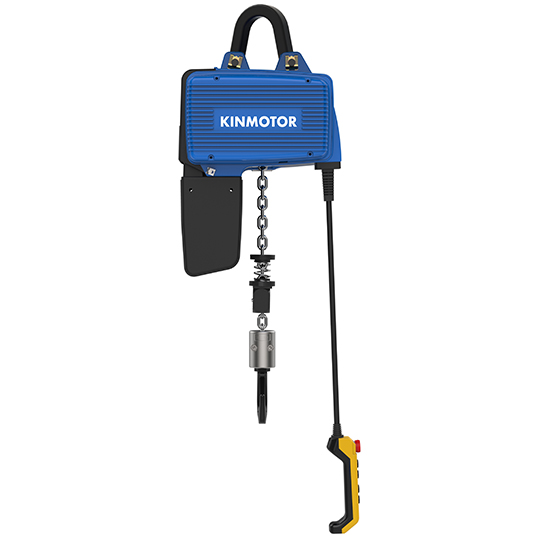

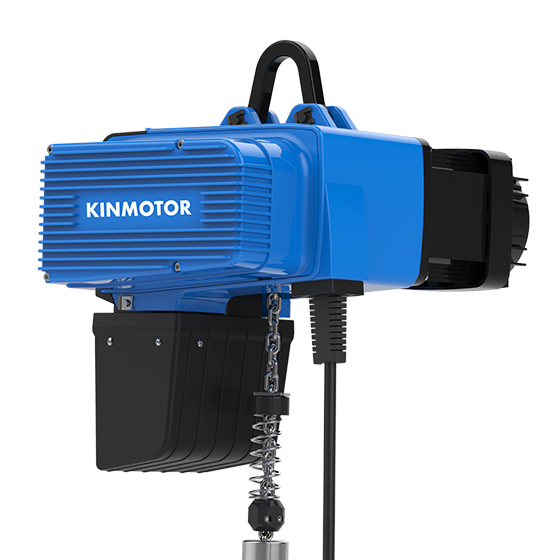

D2 series variable frequency chain hoist with aluminum housing, light weight and strong, low net empty design, and the use of custom frequency conversion driver with special frequency conversion motor, for the lifting of the hoist is controlled and the speed can be adjusted arbitrarily, which can be lower than the conventional low speed speed gear 1/2, high speed can be higher than 50% of the conventional high-speed gear, smooth operation, and lifting and stopping vibration is small, no impact, low failure rate, strong protection ability, the whole machine. Long service life, reserve a variety of control interfaces, easy to automate control.
Features
Compared with the traditional hoist, the response speed is faster, the operation is more reliable, the fault is lower, and the service life is longer;
Many interfaces, flexible configuration, can be adapted to a variety of control interface signals, easy to automate control.
Built-in remote control module to control the operation of electric travel drives.
Technical Parameters
No. D2B012 D2B025 D2B050 D2B100 D2B200
Maximum Load(kg) 125 250 500 1000 2000
Lifting Speed(m/min) 1-12 0-10 1-8 1-8 0.5-4
Rated Power(KW) 0.75 0.75 1.1 2.2 2.2
Maximum vertical range(m) 4/5/8/11 (Customizable)
Control Mode Wire button/remote button
Weight( kg ) 25 25 32 52 62
Chain Specification(mm) 5.0  5.0 6.3 7.1 7.1
Power Standard 380V (Optional 220V)
Organization Job Level M5
Operating temperature (℃) -10℃~55℃

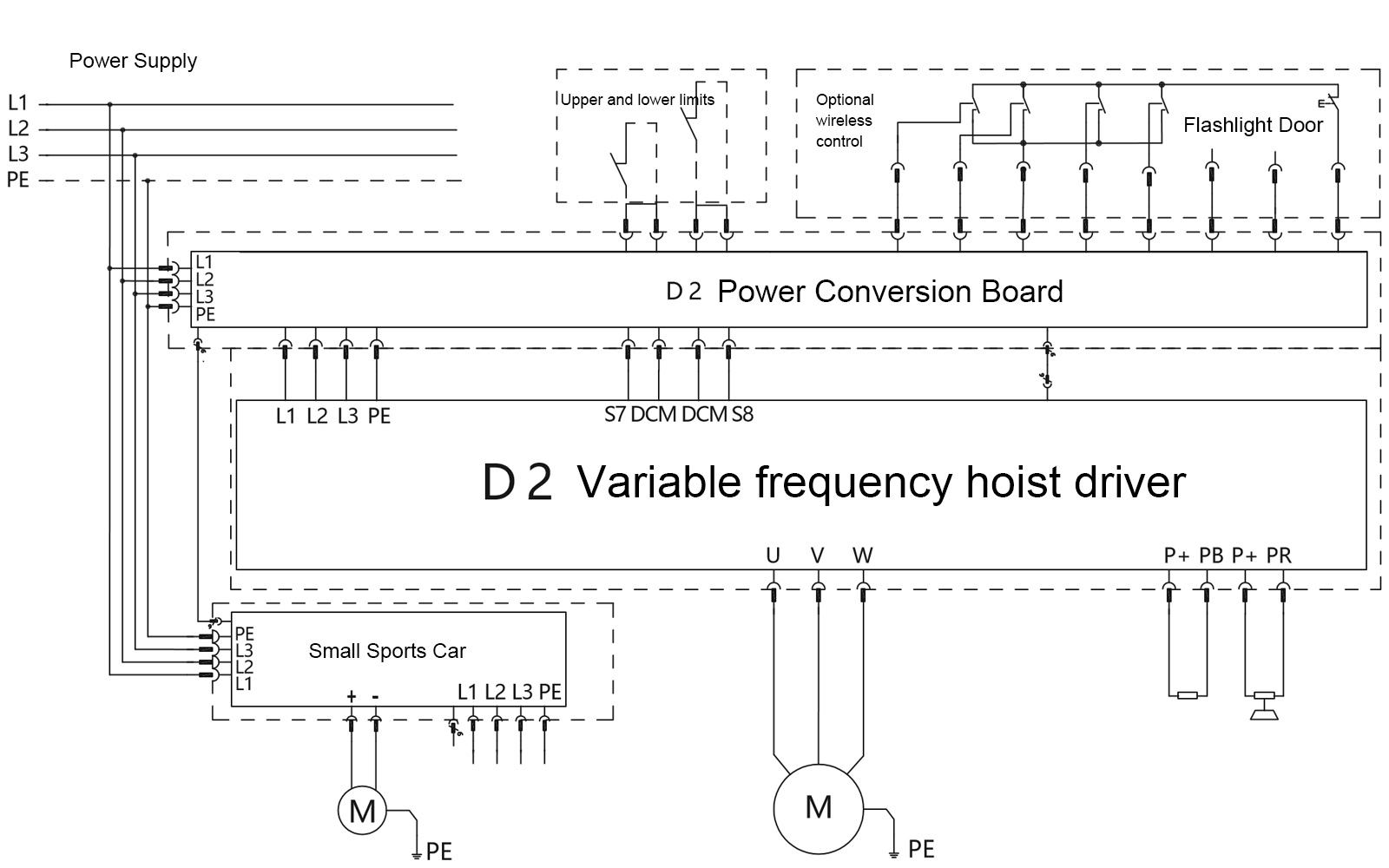

Wiring Diagram
D2 Variable Frequency Chain Hoist
